C/C++ File I/O

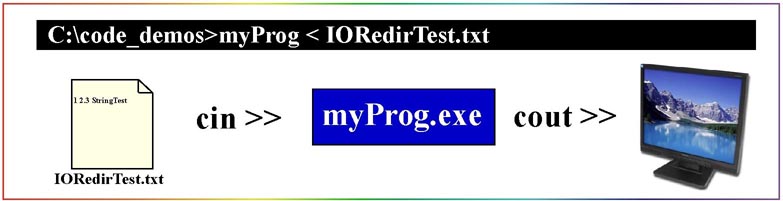

I/O Redirection

Standard C File I/O

• Standard - the most common way and the one we will look at in depth.
• System - also called low level. The programmer must set up and keep track of the buffer used to transfer data, the format of the data and everything else. It is harder to do but more efficient.

Standard I/O

1. Character
2. String
3. Formatted
4. Record

Opening a file in C

1. filename – A character array holding the name of the file to open. This can include the path as well.
2. mode – A character array holding one of the following which tells what you want to do with the file
   • "r" = read - file must already exist.
   • "w" = write - If the file exists its contents will be overwritten. If not it will be created.
   • "a" = append - New data will be appended to the end of the present data in the file if the file exists, otherwise the file will be created.
   • "r+" = read & write - file must already exist.
   • "w+" = read & write - if the file exists its contents are overwritten. If not it is created.
   • "a+" = read & append - if file does not exist it is created.
   • "wb" = write binary
   • "rb" = read binary
   • "ab" = append binary

Simple way:




	FILE *fptr;
	fptr = fopen("myfile.txt", "r");



This works fine as long as the file already exists. If not your program may crash, so the conventional way of opening a file is:

	FILE *fptr;
	if ( (fptr=fopen("myfile.txt","r"))==NULL)
	{
		printf("Can't open file myfile.txt\n");
		exit();
	}



NOTE: If you want to avoid overwriting a file that already exists you can do the check for != NULL and if the result is true give a warning that the file already exists.

Closing a file in C

Reading and Writing Characters in ANSI Standard C

• char fputc(int, FILE *); Writes one character to a file. Note the character is treated as an integer.
• char fgetc(FILE *); Reads one character from a file

Sample Code

#include <stdio.h>

int main(void)
{
    FILE *fptr;  // pointer to FILE
    char ch;

    //-----------------------------------------------
    //  Writing characters to a file
    //  I/O function:  int fputc(int ch, File *fptr)
    //-----------------------------------------------
    // Open the file for writing
    fptr=fopen("textfile.txt","w");

    // Write characters entered from the keyboard till user presses Enter
    while ( (ch = getc(stdin)) != '\n')
        fputc(ch, fptr);

    // Close the file
    fclose(fptr);

    //-----------------------------------------------
    //  Reading characters from a file
    //  I/O function:  int fgetc(File *fptr)
    //-----------------------------------------------
    if( (fptr = fopen("textfile.txt","r")) == NULL)
    {
        printf("Can't open textfile.txt.\n");
        return 0;
    }
    while ( (ch = fgetc(fptr)) != EOF)
        printf("%c", ch);
    fclose(fptr);
    return 0;
}

Reading and Writing Strings in ANSI Standard C

• int fputs(const char*, FILE *); Writes a string to a file.
• char *fgets(char *s, int n, FILE *); Reads at most n-1 characters into char array s and terminates it with a '\0'. NOTE: The newline character '\n' is read in as part of the string and must be explicitly removed.

Sample Code

#include <stdio.h>
#include <string.h>

int main(void)
{
    FILE *fptr;        // pointer to FILE

    char string[81];     // Use 80 char lines
    fptr = fopen("textfile.txt","w");
    //-----------------------------------------------
    //  Writing strings to a file
    //  I/O function:  int fputs(char *string, File *fptr)
    //-----------------------------------------------
    while (strlen(gets(string)) > 0)
        {
            fputs(string, fptr); // write string
            fputs("\n", fptr);   // write newline
        }
    fclose(fptr);

    //-------------------------------------------------------------
    //  Reading strings from a file
    //  I/O function:  char *fgets(char *string, int n, File *fptr)
    //--------------------------------------------------------------
    if((fptr = fopen("textfile.txt","r"))==NULL)
    {
        printf("Can't open textfile.txt.\n");
        return 0;
    }
    while (fgets(string,80,fptr) != NULL)
    {
        string[strlen(string)-1] = '\0';
        printf("%s\n", string);
    }
    fclose(fptr);
    return 0;
}

Reading and Writing Formatted I/O in ANSI Standard C

• fprintf(ptr,"format specifier", varlist); - Writes specified variables to disk
• fscanf(ptr,"format specifier", varlist); - Reads specified variables from disk

Sample Code

#include <stdio.h>
#include <string.h>

int main(void)
{
    int inum;
    float fnum;
    char string[81];
    FILE *fptr;
    fptr = fopen("textfile.txt", "w");
    //-----------------------------------------------------------
    //  Writing formatted data to a file
    //  I/O function:  int fprintf(File *fptr, char *format,...)
    //-----------------------------------------------------------
    do
    {
        printf("Type int, float, and string: ");
        scanf("%d %f %s", &inum, &fnum, string);
        fprintf(fptr,"%d %f %s\n",inum,fnum,string);
    }
    while (inum != 0);
    fclose(fptr);

    //-----------------------------------------------------------
    //  Reading formatted data from a file
    //  I/O function:  int fscanf(File *fptr, char *format,...)
    //-----------------------------------------------------------
    if((fptr=fopen("textfile.txt","r"))==NULL)
    {
        printf("Can't open textfile.txt.\n");
        return 0;
    }
    while(fscanf(fptr,"%d %f %s", &inum, &fnum, string) != EOF)
        printf("%d %f %s\n",inum,fnum,string);
    fclose(fptr);
    return 0;
}

Reading and Writing Record (binary) in ANSI Standard C

• fread(&object, sizeof(object), n, fptr); Reads n blocks of size sizeof(object) into object. Unless object is an array n=1.
• fwrite(&object, sizeof(object), n, fptr); Writes n objects of size sizeof(object) starting at &object.

Sample Code

#include <stdio.h>

struct simple
{
    int num;
    char ch;
};

int main(void)
{
    FILE *fptr;        // pointer to FILE
    simple sim;
    char ch;

    fptr=fopen("structfile.bin", "wb");
    //------------------------------------------------------
    //  Writing structures to a file
    //  I/O function:  long fwrite(void *buffer, long size,
    //                           long numObjects, FILE *fp)
    //------------------------------------------------------
    do
    {
        printf("Type an int and a char.\n");
        scanf("%d %c", &sim.num, &sim.ch);
        fwrite(&sim, sizeof(struct simple), 1, fptr);
        printf("Add another structure to disk(y/n)?  ");
        fflush(stdin); // Flush the keyboard buffer
        ch = getc(stdin);
    }
    while(ch =='y');

    fclose(fptr);
    //------------------------------------------------------
    //  Reading structures from a file
    //  I/O function:  long fread(void *buffer, long size,
    //                           long numObjects, FILE *fp)
    //------------------------------------------------------
    if( (fptr = fopen("structfile.bin", "rb")) == NULL)
    {
        printf("Can't open structfile.bin.\n");
        return 0;
    }
    while (fread(&sim, sizeof(struct simple), 1, fptr)==1)
        printf("%d %c\n", sim.num, sim.ch);
    fclose(fptr);
    return 0;
}

Random Access files

	fseek(fptr, offset, mode);

1. fptr - A pointer to an open FILE.
2. offset - Number of bytes to move the internal file pointer, declared as a long.
3. mode - The direction in which to move.
   • 0 - Seek from the beginning of the file
   • 1 - Seek from the current position of the file pointer. Use negative values to seek backward.
   • 2 - Seek from the end of the file. Use negative values to seek backward.

	long offset;
	offset = recno * sizeof(struct simple); // recno = # of record wanted

	offset = 5 * sizeof(struct simple);
	fseek(fptr, offset, 0); // Find record #6

	offset = 5 * sizeof(struct simple);
	if (fseek(fptr, offset, 0) != 0)
	{
		printf("Record does not exist.");
		exit();
	}
	fread(&sim, sizeof(struct simple), 1, fptr);

Error Handling

1. ferror(fptr); Takes a pointer to a file as its argument and returns 0 (TRUE) if no error occured, or non-zero (FALSE) if some error occurred during the last access of the file.
2. perror("Error message"); Takes a string that you supply which usually indicates where the error occurred. It prints this string and then it prints a system level error message. For example it can be used after a read or write operation.


   		if ( ferror(fptr) )			// If error
   		{
   			perror("Disk access error!"); // Report it
   			fclose(fptr);			// Close file
   			exit();				// And exit.
   		}

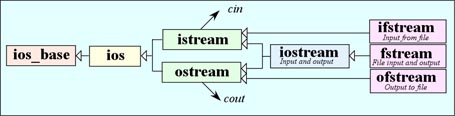

Standard C++ File I/O

1. Character
2. String
3. Binary

Opening a file in C++

	fstream 	open(const char *filename, int mode);
	ifstream 	open(const char *filename); 			// Open for input by default
	ofstream 	open(const char *filename); 			// Open for output by default

1. filename – A character array holding the name of the file to open. This can include the path as well.
2. mode – A character array holding one of the following which tells what you want to do with the file. This argument is only needed for fstream objects. An ifstream (input file stream) object is opened for input automatically and an ofstream (output file stream) object is opened for output automatically.
   • ifstream::in = read – default for ifstream objects
   • ios::in = read – when using an fstream file reference
   • ostream::out = write – default for ostream
   • ios::out = write – when using an fstream file reference
   • ios::app = append - New data will be appended to the end of the present data in the file if the file exists, otherwise the file will be created.
   • ifstream::binary = read binary
   • ofstream::binary = write binary

	Given ofstream outfile then use...

		outfile.open("myfile.txt", ofstream::out);
			or
		outfile.open("myfile.txt", ios::out);
			or
		outfile.open("myfile.txt");

	Given fstream outfile then use...

		outfile.open("myfile.txt", ofstream::out);
			or
		outfile.open("myfile.txt", ios::out);

	if (!outfile.is_open())
	{
		cout << "Can't open file myfile.txt\n";
		exit();
	}

	Given ifstream infile then use...

		infile.open("myfile.txt", ofstream::in);
			or
		infile.open("myfile.txt", ios::in);
			or
		infile.open("myfile.txt");	As will these

	Given fstream infile then use...

		infile.open("myfile.txt", ofstream::in);
			or
		infile.open("myfile.txt", ios::in);

	if (!infile.is_open())
	{
		cout << "Can't open file myfile.txt\n";
		exit();
	}

Checking State Flags

1. bad() Returns true if a reading or writing operation fails. This can happen if you try to write to a file that is not open for writing or if the disk you are writing to becomes full.
2. fail() Returns true in the same cases as bad() but also if a data format error is encountered. This can happen if you read an alphabetic character when you were expecting to read a digit.
3. eof() Returns true if a file open for reading has reached the end.
4. good() A generic state flag. Returns false in any of the cases in which the previous flags return true.

Closing a file

	outfile.close();
	infile.close();

Reading and Writing Characters in ANSI Standard C++

• outfile.put(char ch); Writes one character to a file. Note the character is treated as an integer.
• infile.get(); Reads one character from a file

Sample Code

#include <fstream.h>

int main(void)
{
    ofstream outfile;   // Output file stream
    ifstream infile;    // Input file stream
    char ch;

    outfile.open("textfile.txt", ofstream::out);
    //-----------------------------------------------
    //  Writing characters to a file
    //  I/O function:  outfile.put(char ch)
    //-----------------------------------------------
    cin.get(ch);
    while(ch != '\n')
    {
        outfile.put(ch);
        cin.get(ch);
    }
    outfile.close();

    //-----------------------------------------------
    //  Reading characters from a file
    //  I/O function:  char infile.get()
    //-----------------------------------------------
    infile.open("textfile.txt", ifstream::in);
    cout << "Characters read from file.\n";
    while (infile.good())
    {
        ch = infile.get();
        cout << ch;
    }
    cout << "\n";
    infile.close();
    return 0;
}

Reading and Writing Strings in ANSI Standard C++

• outfile.write(char str[], int n); Write a string of n characters from the character array str to a file.
• infile.getline(char str[], int n); Reads up to n characters into char array str and terminates it with a '\0'. Stops reading if a newline character is found. Note: Unlike the C equivalent getline() does not read the newline into the array.

Sample Code

#include <fstream.h>

int main(void)
{
    ofstream outfile;    // Output file stream
    ifstream infile;    // Input file stream
    char line[81];     // Use 80 char lines

    outfile.open("textfile.txt", ofstream::out);
    //-----------------------------------------------------------
    //  Writing strings to a file
    //  I/O function:  outfile.write(char *string, int numChars)
    //-----------------------------------------------------------
    cin.getline(line, 80);
    while(strlen(line) > 0)
    {
        outfile.write(line, strlen(line)); // write string
        outfile.write("\n", 1); // write newline
        cin.getline(line, 80);
    }
    outfile.close();

    infile.open("textfile.txt", ifstream::in);
    //-----------------------------------------------------------
    //  Reading strings from a file
    //  I/O function:  infile.getline(char *string, int maxChars)
    //-----------------------------------------------------------
    while (infile.good())
    {
        infile.getline(line, 80);
        cout << line << "\n";
    }
    infile.close();
    return 0;
}

Reading and Writing binary in ANSI Standard C++ using << and >>

Sample Code

#include <fstream.h>

int main(void)
{
    ofstream outfile;    // Output file stream
    ifstream infile;    // Input file stream
    int num;

    outfile.open("binfile.dat", ofstream::binary);
    //-----------------------------------------------
    //  Writing numerical data as binary to a file
    //  I/O function:  Overloaded << operator
    //-----------------------------------------------
    for(int i=0; i<10; i++)
    {
        outfile << i << " \n";
    }
    outfile.close();

    infile.open("binfile.dat ", ifstream::binary);
    //-----------------------------------------------
    //  Reading numerical data as binary from a file
    //  I/O function:  Overloaded >> operator
    //-----------------------------------------------
    while (infile.good())
    {
        infile >> num;
        if(infile.good()) cout << num << " \n";
    }
    infile.close();
    return 0;
}

Reading and Writing binary in ANSI Standard C++ using write and read

• write(&object, sizeof(object)); Writes 1 object of size sizeof(object) starting at address &object in memory.
• read(&object, sizeof(object)); Reads 1 block of size sizeof(object) into object.

Sample Code

#include <fstream.h>

struct simple
{
    int x;
    char ch;
};

int main(void)
{
    ofstream outfile;    // Output file stream
    ifstream infile;    // Input file stream
    simple sim1;

    outfile.open("StructBin.dat", ofstream::binary);
    if(!outfile.is_open())
    {
       cout << "Unable to open file for output."
               << "Program terminating.\n";
       return 0;
    }
    //--------------------------------------------------------
    //  Writing structures in binary to a file
    //  I/O function:  outfile.write(const char *, int size)
    //--------------------------------------------------------
    for(int outst=0; outst<10; outst++)
    {
       sim1.x = outst;
       sim1.ch = 'a' + outst;

    // Write 1 structure to the file. Note: the write() function
    // expects a const char* as the first argument.  Use the
    // reinterpret_cast operator to cast the structure pointer to a
    // const char*.
       outfile.write(reinterpret_cast<const char *>(&sim1),
                    sizeof(simple));
    }
    outfile.close();

    infile.open("StructBin.dat", ifstream::binary);
    if(!infile.is_open())
    {
        cout << "Unable to open file for input." <<
                     "Program terminating.\n";
        return 0;
    }
    //--------------------------------------------------------
    //  Reading structures in binary from a file
    //  I/O function:  infile.read(char *, int size)
    //--------------------------------------------------------
    while(!infile.eof())
    {
    // Read 1 structure from the file. Note: the read() function
    // expects a char* as the first argument.  We use the
    // reinterpret_cast operator to cast the structure pointer to a
    // char*.
        infile.read(reinterpret_cast<char *>(&sim1),
            sizeof(simple));
        if(!infile.eof())
            cout << sim1.x << " -- " << sim1.ch << "\n";
    }
    infile.close();
    return 0;
}

Random Access Files in C++

• tellg() Returns the position in bytes from the beginning of the file where the get pointer is located.
• tellp() Returns the position in bytes from the beginning of the file where the put pointer is located.

• seekg() Sets the position in bytes from the beginning of the file where the get pointer will be moved to.
• seekp() Sets the position in bytes from the beginning of the file where the put pointer will be moved to.

• seekg(offset, direction)
• seekp(offset, direction)

• IOS::beg Offset is counted from the beginning of the file.
• IOS::cur Offset is counted from the current position.
• IOS::end Offset is counted from the end of the file.

// obtaining file size
#include <iostream>
#include <fstream>
using namespace std;

int main ()
{
	long begin,end;
	ifstream myfile;
	myfile.open("example.txt");
	begin = myfile.tellg();
	myfile.seekg (0, ios::end);
	end = myfile.tellg();
	myfile.close();
	cout << "size is: " << (end-begin) << " bytes.\n";
	return 0;
}

Passing streams to functions

• If you pass streams by value the compiler will not complain.
• But, if you do mysterious, bad things will start to happen, and often in parts of the code which don’t appear to be related to the offending function.
