Conditionals
When you write a computer program the commands or statements which
you write in the chosen programming language are listed in order
one after the other in the source code file. The order in which
these statements are executed when the program is running however
is usually not the same. Controlling which statements in a program
are executed and the order in which they are executed is called
Flow of Control.
Frequently in a program you will want to test whether a particular
condition is true for false. For example, does a variable
hold a particular value, or has some event occurred, etc. This
can be outlined in pseudocode as:
if(some condition is true) then
do this
else
do this instead
The bool data type
You should already be familiar with the bool data type. In a program
you an create variables of type bool such as
bool isDataOK;
bool done;
and set these variables to either true (isDataOK = true;) or false
(done = false;). The state or condition of many other values can also
be evaluated as either true or false. These
conditions can be tested using a set of Relational Operators to
evaluate what are called Logical Expressions.
Logical Expressions
These state a condition which can be either true or false.
-
bool isDataOK; – Boolean expression which can be true or false.
-
(x < y) – Is x less than y? If x and y are int
variables this condition can be true or false.
-
(a < b) AND (c > d) – Two logical expressions. If a, b, c and d are int
variables this condition can be true (if a is less than b and c is greater
than d) or false.
Relational Operators
In C/C++ we have these relational operators which can be used in conditional expressions:
|
|
==
|
|
|
Equal to (be careful with this one. Remember two '=' characters)
|
|
|
!=
|
|
|
Not equal
|
|
|
<
|
|
|
Less than
|
|
|
>
|
|
|
Greater than
|
|
|
<=
|
|
|
Less than or equal (note, you cannot say =<)
|
|
|
>=
|
|
|
Greater than or equal (note, you cannot say =>)
|
Examples
Assume you have the following variables declared and initialized:
int x = 10;
int y = 15;
char ch1 = 'm';
char ch2 = 'n';
float f1 = 1.2345;
float f2 = 1.2345;
string s1 = "This is a string";
string s2 = "This is a string, too";
The following table shows some conditional statements and what their
"value" (true or false) state will be:
|
(x < y) is true
|
(ch1 < ch2) is true
|
(f1 < f2) is false
|
|
(x == y) is false
|
(ch1 > ch2) is false
|
(f1 == f2) is true (maybe, see warning below)
|
|
(x <= y) is true
|
(ch1 >= ch2) is false
|
(f1 != f2) is false (maybe, see warning below)
|
|
(x == y) is false
|
(ch1 != ch2) is true
|
(f1 >= f2) is true (maybe, see warning below)
|
|
(s1 < s2) is true. Operators are overloaded for strings. Less than means comes before
in alphabetical order
|
|
(s1 != s2) is true.
|
Warning
-
Don’t try to compare floats or doubles as the internal representation of these can make two
seemingly equal values appear not equal.
-
If you compare a Boolean with an int (example; (isDataOK < 5)) the boolean value true is
type coerced to the integer value 1 and the boolean value false is type coerced to the
integer value 0. That means this conditional will always be false since both 0 and 1 are less than 5.
The if statement

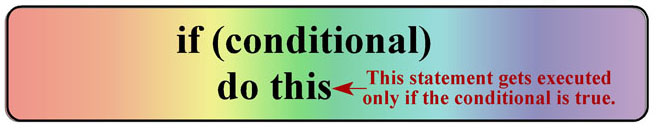

Now we come to where we combine conditional statements with flow of control. The if
statement is used to test a conditional expression and execute one or more statements if
that conditional is true. The general form of the if statement looks like this:
If the conditional expression is true then the line of code immediately after the if
statement will be executed. If the conditional is not true then the line of code immediately
after the if statement will not be executed and "flow of control" will pass to the
next statement.
The if-else statement
You can also provide an alternate line of code to be executed if the conditional statement is
false. The general form of the if-else statement looks like this:
If the conditional expression is true then the line of code immediately after the if
statement will be executed. If the conditional is not true then the line of code immediately
after the else statement will be executed and then "flow of control" will pass to the
next statement following the if-else statement.
Executing more than one line of code after an if or else statement
Most of the time when you use an if or an if-else statement in a program
you will want to exeute more than just one line of code depending on the state of the
conditional. To do this use braces to enclose the block of code to be exeuted for the
if part of the statement an for the else part of the statement.
Warning
This is a common error. Look at the code below:
int n;
cin >> n;
if(n = 3)
cout << "n equals 3" << endl;
else
cout << "n not equal 3" << endl;
This code ALWAYS prints "n equals 3". Did you expect it to only print "n equals 3" when
the user inputs the value 3? Notice that the conditional expression is (n = 3) not
(n == 3). Here is what actually happens when you do this. Note: this says
WHEN you do this, not IF you ever do this, because you will!:
-
At the statement cin >> n; the user will input an integer value.
-
The statement in parentheses is NOT a conditional statement. It actualls
sets the variable n equal to 3.
-
Now with n equal to 3 the actual conditional that is tested is if (n).
But, If n is zero the conditional is evaluated as false. If n is
not zero the conditional is evaluated as true.
Nested if statements
It is possible to "string" several if statements together to provide
multiple branching flow of control statements. Look at the general
format of a nested if statement below:
This means you can include commands like the one below in your code:
if (x < y)
cout << "x is less than y" << endl;
else if (x == y)
cout << "x is equal to y" << endl;
else
cout << "x is greater than y" << endl;
Warning: The dangling else
There is something else to be careful not to do. Look at the code below.
What we want to test is if average is between 60 and 70 then
print "Passing but marginal" else print "Failing".
if (average >= 60)
if(average < 70)
cout << "Passing but marginal";
else
cout << "Failing";
What we will actually get is, if average is less than 60 the message "Failing" will
never be printed. In spite of the fact that we have formatted the statement to look
like the else is paired with if (average >= 60) it is actually paired
with if(average < 70). An else is always paired with the closest if
unless braces are used to modify this.
To correct this code so that the else is actually paired with if (average >= 60)
add the braces as shown below:
if (average >= 60)
{
if(average < 70)
cout << "Passing but marginal";
}
else
cout << "Failing";
Now it will work correctly.
Logical Operators
Sometimes you want to check more than one condition in the same statement. For example:
If (this is true) AND (that is true)
If (this is true) OR (that is true)
If NOT (this is false)
C/C++ prlvides three logical operators to let you do this. These are:
-
&& - Logical AND
-
|| - Logical OR
-
! - Logical NOT
Look at these examples:
if ((x == 5) && (y < 10))
cout << "both conditions OK" << endl;
In this example if x is equal to 5 AND y is less than 10
then the string "both conditions OK" will be printed.
if ((x == 5) || (y < 10))
cout << "At least one condition is OK" << endl;
In this example if x is equal to 5 OR y is less than 10
then the string "At least one condition is OK" will be printed.
if (!(x == y))
cout << "x not equal to y" << endl;
In this example if x is NOT equal to y then the string
"At least one condition is OK" will be printed. Note that the conditional
(!(x == y)) is actually the same as (x != y).
One more thing to be aware of in these examples of using logial operators.
The actual evaluation of the conditional statements follows what is known as
short-circuit evaluations.
if(condition 1) && (condition 2)
If condition 1 is false then condition 2 is never evaluated. It doesn't
matter the state of condition 2. If the first condition is false then the whole
statement will be false.
if(condition 1) || (condition 2)
If condition 1 is true then condition 2 is never evaluated because there is
no need to do so. The whole statement will already be considered true.
The following truth tables summarize this:
Precedence with Conditional Operators
The precedence (order of execution in a mixed expression) is determined by the following table.
Unary operators group from right to left (unary + - !).
Binary operators group left to right (math and other logical operators).
Testing the state of an I/O Stream
Look at code in red below. You can test an ifstream or ofstream object at any time
to make sure there has not been an error and the read was good by calling the good()
function of the ifstream or ofstream object. Note that the author of the textbook says to
do this test with this code: if(!inFile). Professional software engineers
do not do it this way. Use the fstream function good() to test if the last action
on the file was successful.
#include <iostream>
#include <fstream>
#include <string>
using namespace std;
int main()
{
string inFileName, outFileName;
ifstream inFile;
ofstream outFile;
int year, month, day;
string str1, str2;
// Prompt user for input
cout << "Enter the name of the input data file." << endl;
cin >> inFileName;
cout << "Enter the name of the output file." << endl;
cin >> outFileName;
// Let user know what is happening
cout << "Opening data file " << inFileName << " for input." << endl;
inFile.open(inFileName.c_str());
if(!inFile.good())
{
cout << "Failed to open data file. Program terminating." << endl;
return 0;
}
cout << "Opening data file " << outFileName << " for output." << endl;
outFile.open(outFileName.c_str());
if(!outFile.good())
{
cout << "Failed to ouput data file. Program terminating." << endl;
return 0;
}
// The rest of the input code section of this example is here.
}
Conditional expressions

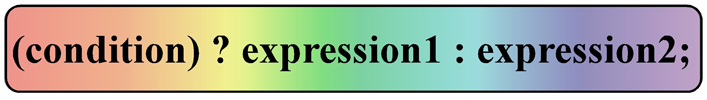

In some situations a simple if-else statement can be replaced with a conditional
expression. The syntax of a conditional expression consists of a
conditional statement in parentheses. This can be just like the conditionals
used in an if-else statement. This is followed by a question mark, a value to be set
if the condition is true, a colon, and finally a value to be set if the condition is
false.
Suppose you have this if-else statement:
if(a < b)
max = a;
else
max = b;
This if-else expression can also be written using the conditional expression syntax:
max = (a < b) ? a : b;
The conditional expression is handy short-hand syntax for certain situations, but be careful,
you cannot substitued a conditional expression for every if-else statement.
The Switch statement

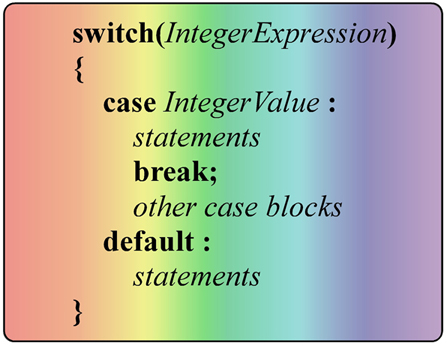

In some situations where you have a nested if it may be more efficient to use a
switch statement. The general syntax for a switch statement is:
This consists of the keyword switch followed by an interger expression (usually
just an integer variable) in parentheses. Then enclosed in braces will be any number of
case blocks consisting of the keyword case, a value which the
interger expression could take and a colon. This is followed by any number of statements
to be executed if the interger expression has this value. The list of statements to be
excuted is then terminated using the break keyword. You may also end the
list of case blocks with an optional default block containing
statements to be executed if the integer expression holds none of the given case values.
Suppose you have the following nexted if-else statement:
int dNum;
cout << "Which doctor do you want to see?\n"
cout << "(1)Smith, (2)Jones, (3)Quack\n";
cin >> dNum;
if(dNum == 1)
cout << "Down the hall to room 123\n";
else if(dNum == 2)
cout << "Up stairs to room 234\n";
else if(dNum == 3)
cout << "Take elevator to room 1313\n";
else
cout << "Sorry, no such doc here.\n';
This can be rewritten in the form of a switch statement:
int dNum;
cout << "Which doctor do you want to see?\n"
cout << "(1)Smith, (2)Jones, (3)Quack\n";
cin >> dNum;
switch(dNum)
{
case 1 : cout << "Down the hall to room 123\n";
break;
case 2 : cout << "Up stairs to room 234\n";
break;
case 3 : cout << "Take elevator to room 1313\n";
break;
default: cout << "Sorry, no such doc here.\n";
}
Here is an example of using a swith statement with a char
variable as the interger expression.
char grade;
// Variable grade set to 'A', 'B', 'C', 'D', or 'F'
switch(grade)
{
case 'A' : cout << "Excellent work\n";
break;
case 'B' : cout << "Good work\n";
break;
case 'C' : cout << "Average work\n";
break;
case 'D' : cout << "Poor work\n";
break;
case 'F' : cout << "Change your major!\n";
break;
}
If you fail to include the break statement at the end of the
list of statements to be executed for a case block then
execution will "fall through" to the next case block and
execute the statements there. Sometimes this may be what you want.
Suppose in the example above the char variable grade could
hold either an upper or lower case letter grade. The following switch
statement would give the appropriate message regardless of the case of
the leter grade.
char grade;
// Variable grade set to 'a', 'A', 'b', 'B', 'c', 'C', 'd', 'D', 'f', or 'F'
switch(grade)
{
case 'a' : // No break so execution falls through to the next case
case 'A' : cout << "Excellent work\n";
break;
case 'b' :
case 'B' : cout << "Good work\n";
break;
case 'c' :
case 'C' : cout << "Average work\n";
break;
case 'd' :
case 'D' : cout << "Poor work\n";
break;
case 'f' :
case 'F' : cout << "Change your major!\n";
break;
}
